XTC Gear | Cable End - Marine Eye End: EY1x
Size:
Size
Quantity:
$36.99
Pickup available at XTC Fitness Inc.
Stock items usually ready in 1 hour or less.
XTC Gear | Cable End - Marine Eye End: EY1x
1/8"
XTC Fitness Inc.
Pickup available, stock items usually ready in 1 hour or less.
2222 South Sheridan Way
Unit 112
Mississauga ON L5J 2M4
Canada

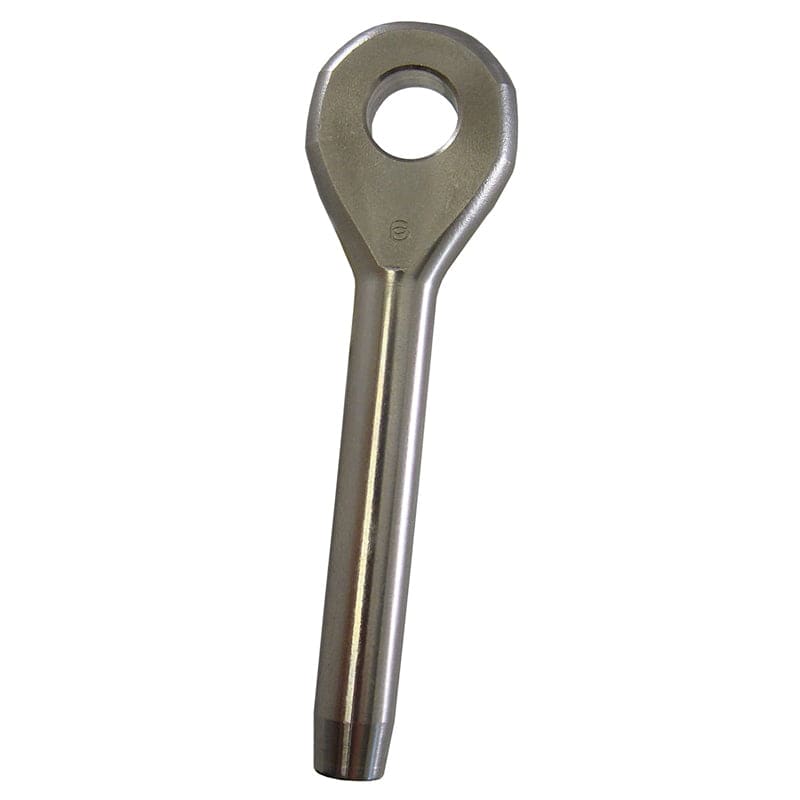

The EY1X Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry. Type 316 Stainless Steel.
- MADE IN THE USA: YES
- BOEING COMMERCIAL AIRCRAFT STANDARD: YES
- NATIONAL AEROSPACE STANDARD: YES
- DFARS COMPLIANT: YES
- MADE IN THE USA: YES

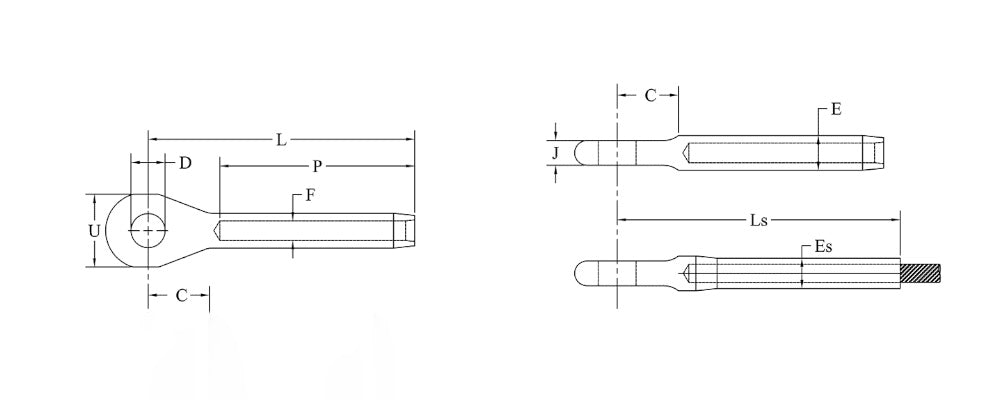

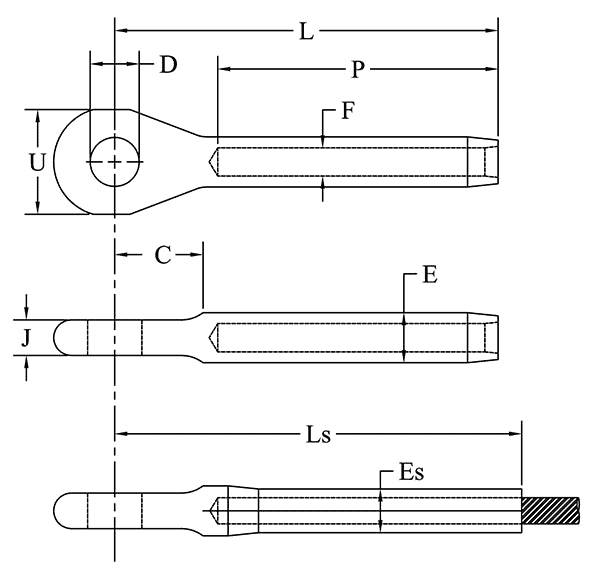

MS Part No. |
Cable Dia. |
C Ref. |
D +.010 -.010 |
E |
F |
J ± 1/32 |
L |
P +.032 -.010 |
Max. U Ref. |
After Swage Es +.000 -.009 |
After Swage Ls Ref. |
Lbs Per Piece |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EY1-2X* | 1/16 | .500 | .264 | .160 | .078 | .218 | 1.500 | 1.063 | .594 | .138 | 1.809 | .015 |
| EY1-3X* | 3/32 | .500 | .264 | .218 | .109 | .218 | 1.58 | 1.188 | .594 | .190 | 2.070 | .028 |
| EY1-4X* | 1/8 | .500 | .264 | .250 | .141 | .218 | 2.088 | 1.500 | .594 | .219 | 2.401 | .033 |
| EY1-5X* | 5/32 | .580 | .327 | .297 | .172 | .281 | 2.355 | 1.688 | .750 | .250 | 2.709 | .055 |
| EY1-6X* | 3/16 | .710 | .389 | .359 | .203 | .359 | 2.750 | 2.000 | .875 | .313 | 3.147 | .090 |
| EY1-7X* | 7/32 | .800 | .452 | .427 | .234 | .406 | 3.220 | 2.313 | 1.000 | .375 | 3.787 | .150 |
| EY1-8X* | 1/4 | .900 | .514 | .494 | .265 | .468 | 3.625 | 2.500 | 1.125 | .438 | 4.282 | .250 |
| EY1-9X* | 9/32 | .990 | .514 | .563 | .297 | .468 | 3.795 | 2.688 | 1.125 | .500 | 4.514 | .330 |
| EY1-10X* | 5/16 | 1.080 | .640 | .635 | .328 | .593 | 4.495 | 3.250 | 1.375 | .563 | 5.274 | .500 |
| EY1-12X* | 3/8 | 1.150 | .640 | .703 | .390 | .593 | 4.930 | 3.500 | 1.375 | .625 | 5.659 | .670 |
| EY1-14X* | 7/16 | 1.24 | .765 | .781 | .468 | .719 | 5.375 | 4.125 | 1.438 | .688 | 6.150 | 1.00 |
| EY1-16X* | 1/2 | 1.290 | .890 | .844 | .531 | .844 | 6.25 | 4.750 | 1.875 | .750 | 7.187 | 1.25 |
MS Part No. |
Cable Dia. |
C Ref. |
D +.010 -.010 |
E |
F |
J ± 1/32 |
L |
P +.032 -.010 |
Max. U Ref. |
After Swage Es +.000 -.009 |
After Swage Ls Ref. |
Lbs Per Piece |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EY1-2X* | 1/16 | .500 | .264 | .160 | .078 | .218 | 1.500 | 1.063 | .594 | .138 | 1.809 | .015 |
| EY1-3X* | 3/32 | .500 | .264 | .218 | .109 | .218 | 1.58 | 1.188 | .594 | .190 | 2.070 | .028 |
| EY1-4X* | 1/8 | .500 | .264 | .250 | .141 | .218 | 2.088 | 1.500 | .594 | .219 | 2.401 | .033 |
| EY1-5X* | 5/32 | .580 | .327 | .297 | .172 | .281 | 2.355 | 1.688 | .750 | .250 | 2.709 | .055 |
| EY1-6X* | 3/16 | .710 | .389 | .359 | .203 | .359 | 2.750 | 2.000 | .875 | .313 | 3.147 | .090 |
| EY1-7X* | 7/32 | .800 | .452 | .427 | .234 | .406 | 3.220 | 2.313 | 1.000 | .375 | 3.787 | .150 |
| EY1-8X* | 1/4 | .900 | .514 | .494 | .265 | .468 | 3.625 | 2.500 | 1.125 | .438 | 4.282 | .250 |
| EY1-9X* | 9/32 | .990 | .514 | .563 | .297 | .468 | 3.795 | 2.688 | 1.125 | .500 | 4.514 | .330 |
| EY1-10X* | 5/16 | 1.080 | .640 | .635 | .328 | .593 | 4.495 | 3.250 | 1.375 | .563 | 5.274 | .500 |
| EY1-12X* | 3/8 | 1.150 | .640 | .703 | .390 | .593 | 4.930 | 3.500 | 1.375 | .625 | 5.659 | .670 |
| EY1-14X* | 7/16 | 1.24 | .765 | .781 | .468 | .719 | 5.375 | 4.125 | 1.438 | .688 | 6.150 | 1.00 |
| EY1-16X* | 1/2 | 1.290 | .890 | .844 | .531 | .844 | 6.25 | 4.750 | 1.875 | .750 | 7.187 | 1.25 |
