Daemar | Internal Retaining Rings - Carbon Steel Phosphate Coating - Imperial

$2.25 CAD
SKU: HO-0050-PA
Size:

Size
Pickup currently unavailable at XTC Fitness Inc.

Daemar | Internal Retaining Rings - Carbon Steel Phosphate Coating - Imperial

1/2"

XTC Fitness Inc.

Pickup currently unavailable

2222 South Sheridan Way
Unit 112
Mississauga ON L5J 2M4
Canada

+18889823481

Daemar® DMR™ Retaining Rings are available from 1/2 to 2 inches as internal or external retaining clips.

FEATURES:

  • Carbon Steel
  • Phosphate Coating
  • Material Grade: SAE 1060-1090
  • Color Black

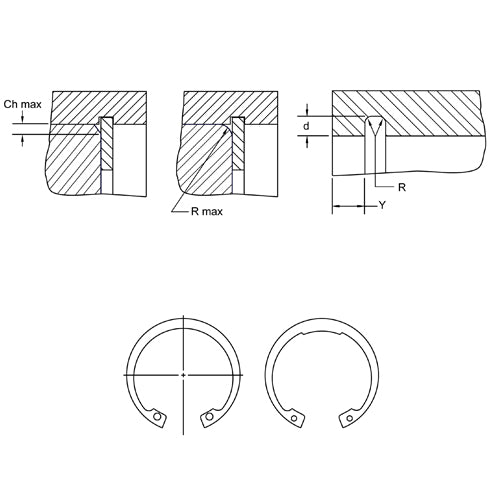

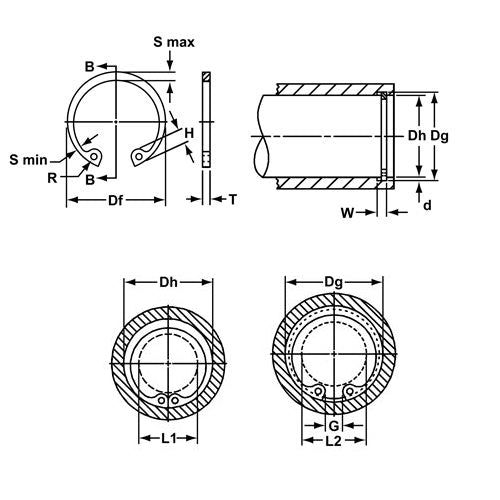

Type Diameter Part Number Allowable Corner Radii & Chamfers - Ch max Groove Depth - d Ring Free Diameter - Df Groove Diameter - Dg Housing Diameter - Dh Gap Width Ring in Groove - G min Lug Height - H Ring Thickness - T Hole Diameter - R Allowable corner Radii & Chamfers - R max Clearance Diameter Compressed in Housing - L1 Clearance Diameter Released in Grove - L2 Maximum Section - S max Minimum Section - S min Groove Width - W Edge Margin - Y
Internal 1/2 in HO-0050-PA 0.021 in 0.015 in 0.548 in 0.530 in 0.500 in 0.090 in 0.114 in 0.035 in 0.047 in 0.027 in 0.260 in 0.290 in 0.053 in 0.035 in 0.039 in 0.045 in
Internal 5/8 in
 HO-0062-PA 0.021 in 0.200 in 0.694 in

0.665 in

 0.625 in 0.104 in 0.132 in 0.035 in 0.062 in 0.027 in 0.340 in 0.380 in 0.060 in 0.035 in 0.039 in 0.060 in
Internal 3/4 in HO-0075-PA 0.025 in 0.023 in 0.831 in 0.796 in 0.750 in 0.143 in 0.142 in 0.035 in 0.062 in 0.032 in 0.450 in 0.490 in 0.070 in 0.040 in 0.039 in 0.069 in
Internal 7/8 in HO-0087-PA















Internal 1 in HO-0100-PA















Internal 1 1/4 in HO-0125-PA















Internal 1 3/8 in HO-0137-PA















Internal 1 1/2 in HO-0150-PA















Internal 1 5/8 in HO-0162-PA















Internal 1 3/4 in HO-0175-PA















Internal 1 7/8 in HO-0187-PA















Internal 2in HO-0200-PA
