The IC5 bike combines innovative design with precision engineering and high-quality mechanical components. Thanks to the WattRate® LCD computer, IC5 features performance displayed in watts.
| Frame | 5 Year |
| Mechanical Components | 3 Years |
| Other Parts | 1 Year |
| Labour | 1 Year |
SETUP
INSTALLATION

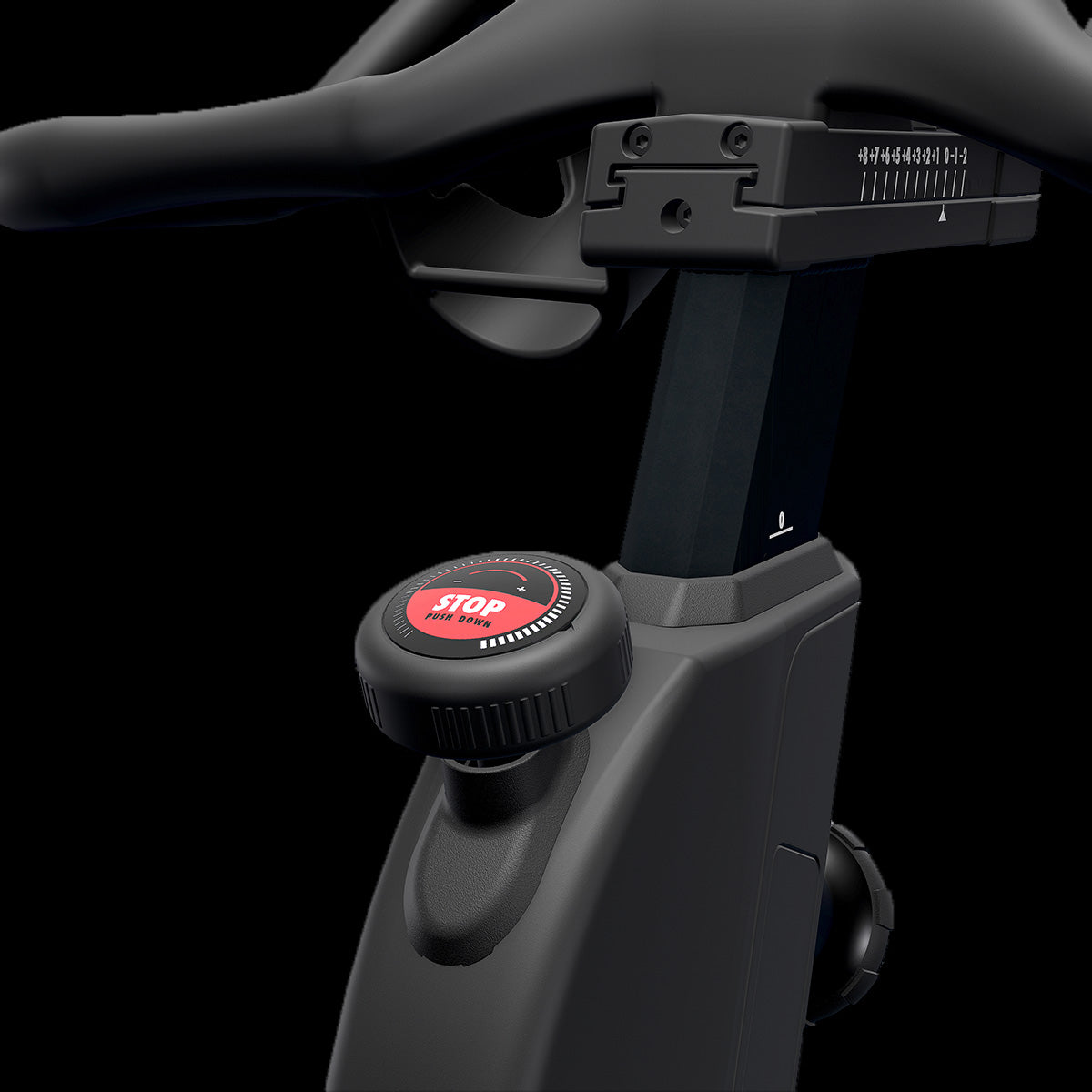

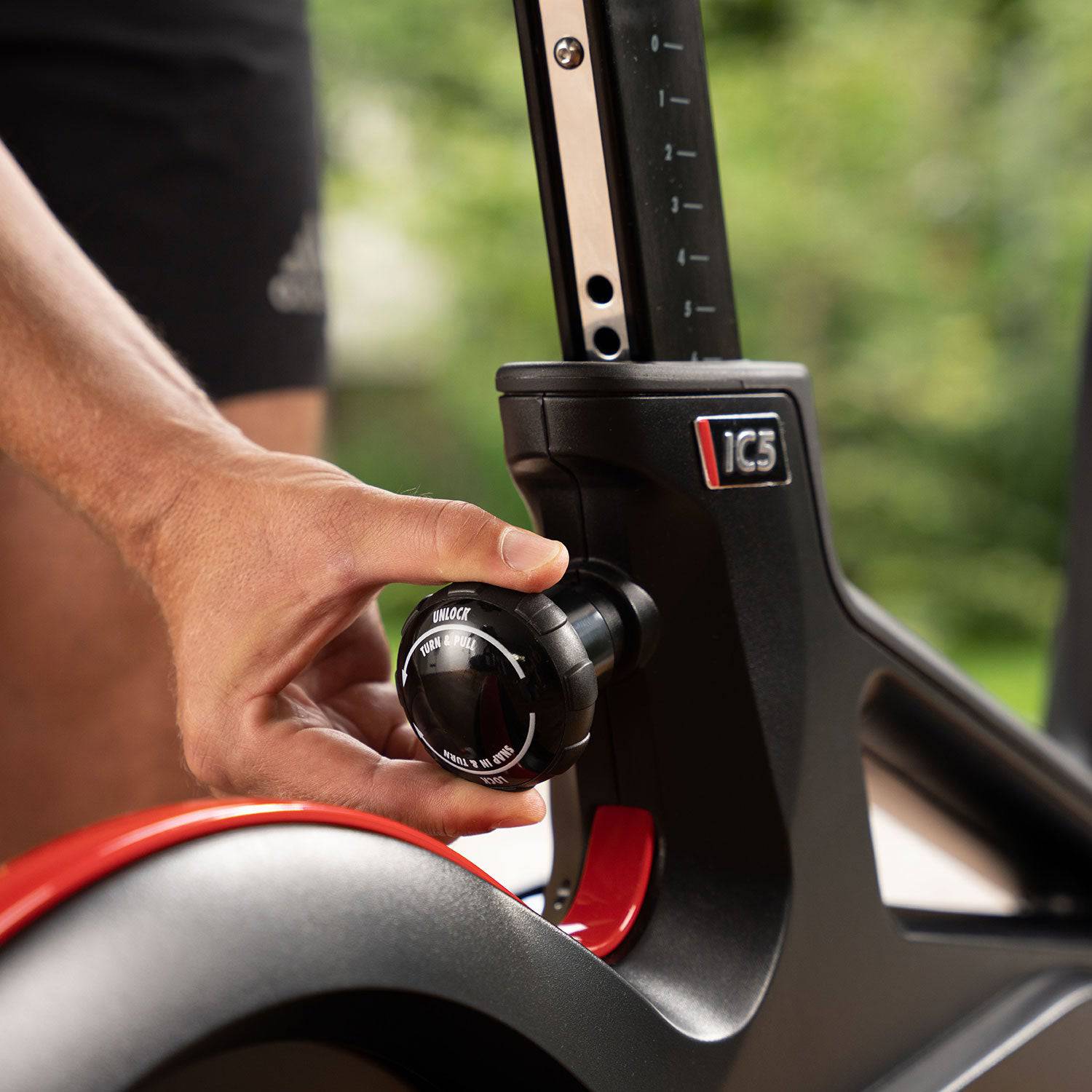

MAGNETIC RESISTANCE
Get quick feedback and make fast adjustments with the 300-degree resistance dial located directly under the handlebar.

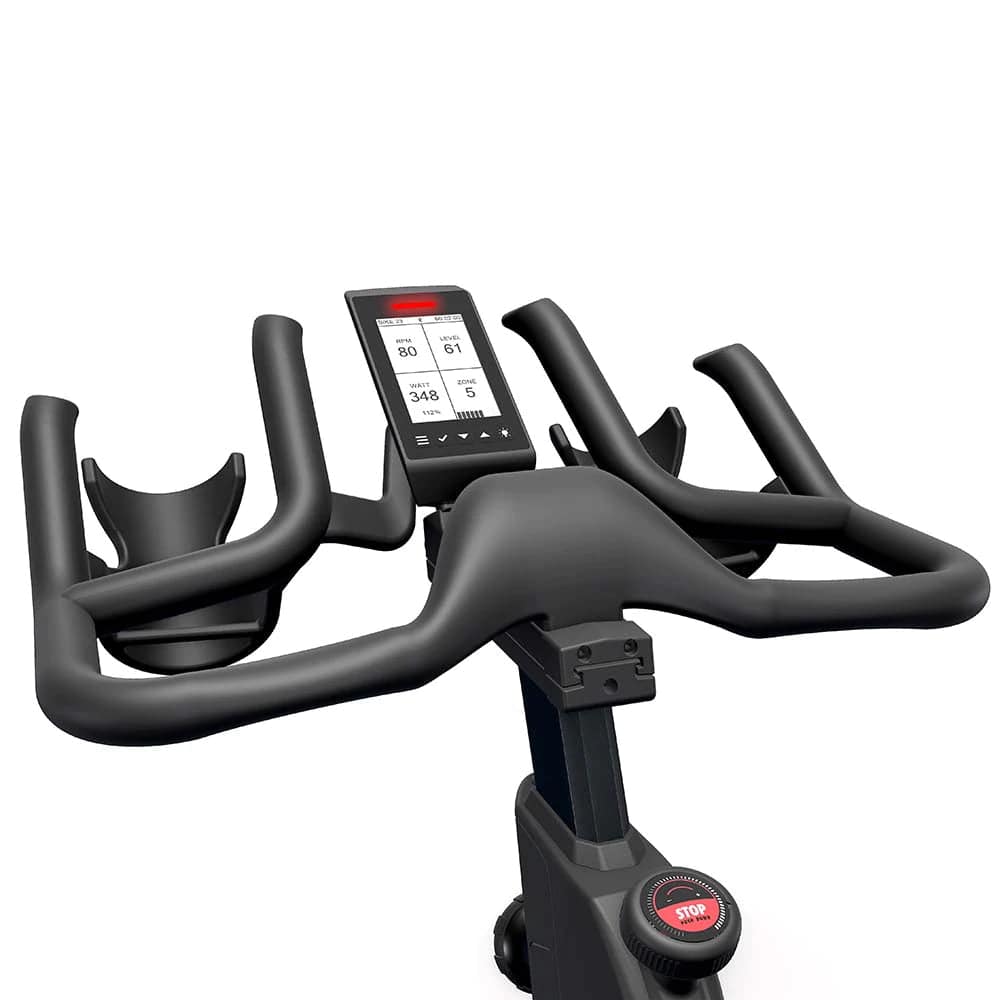

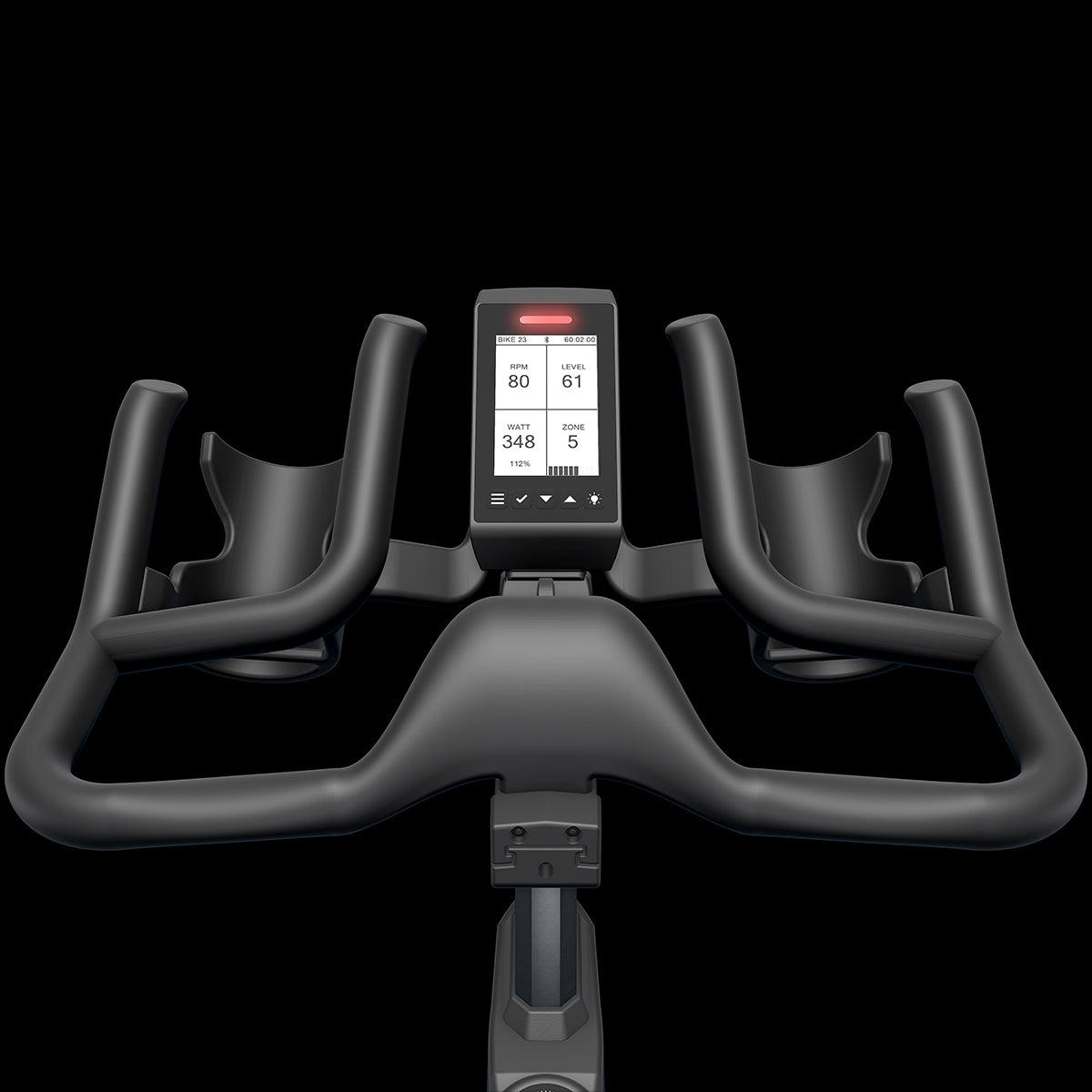

ERGO-FORMED HANDLEBAR
Wider than competitors, the soft PVC handlebar provides enough support and easy positioning.
POLY-V BELT DRIVETRAIN
Smoothly transfers high levels of torque and fast flywheel speed with 1:10 gear ratio. Requires less maintenance than chains.
COMFORT PERFORMANCE SADDLE
Crafted with an opening at the heart of the saddle, this design provides an increase in rider comfort and performance.

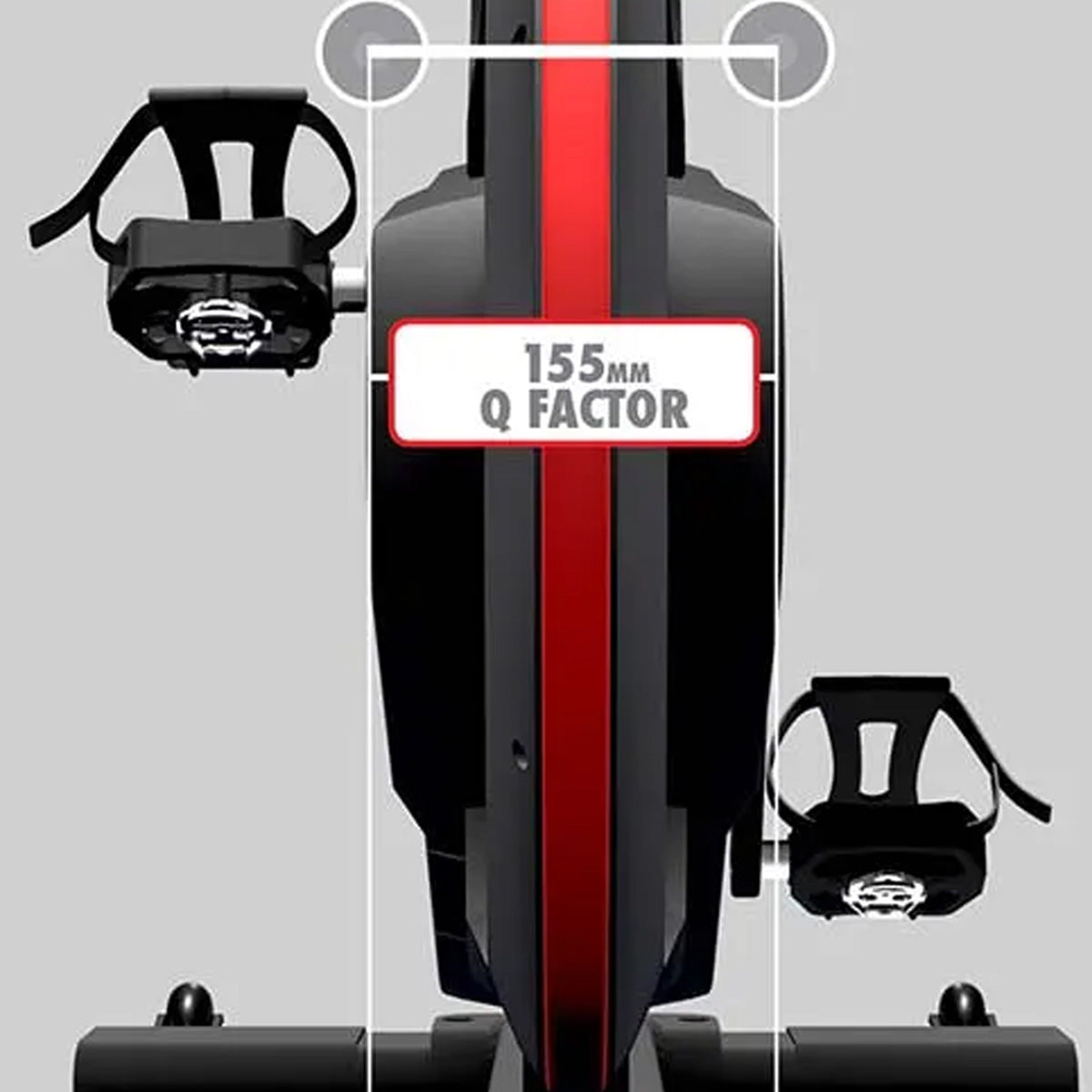

155MM Q-FACTOR
A 155mm Q-Factor makes your indoor cycle feel more like an outdoor bike. It also increases safety, comfort, and efficiency.

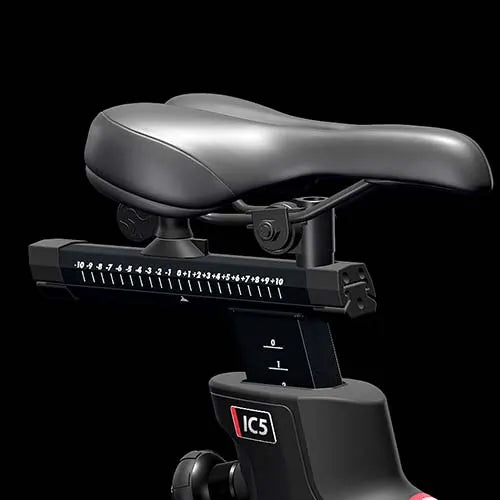

ADJUST TO YOUR FIT
Change saddle height, saddle fore/aft, handlebar height, and handlebar for/aft to find your most comfortable riding position.
Gear Specs
| CATEGORY | SPECIFICATION |
|---|---|
| Dimensions | 52" L x 20.5" W x 42.7"H (132 cm x 52 cm x 120 cm) |
| Adjustment Type | Dials & levers |

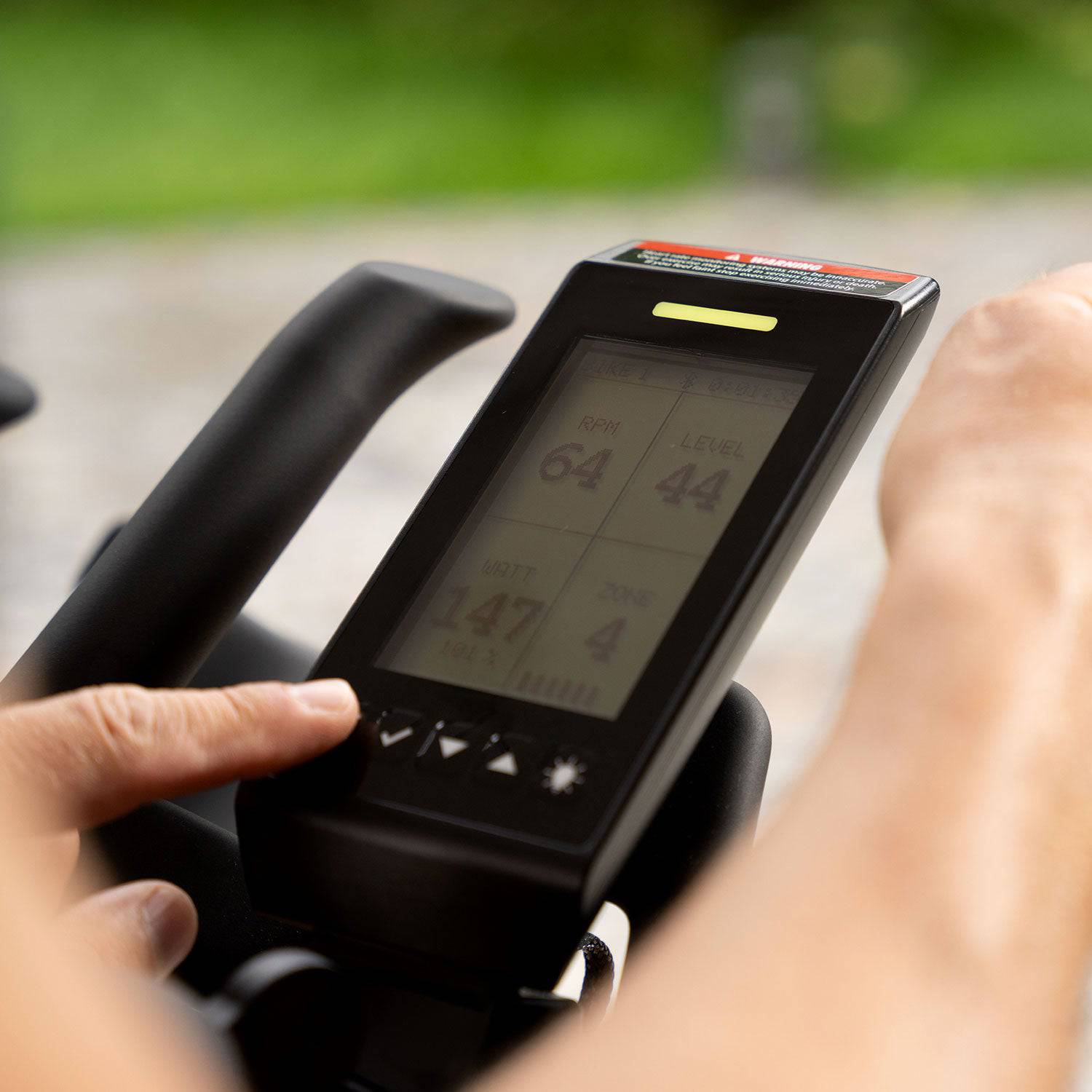

| Computer | WattRate® LCD Computer |
| Computer Power Supply | Battery |

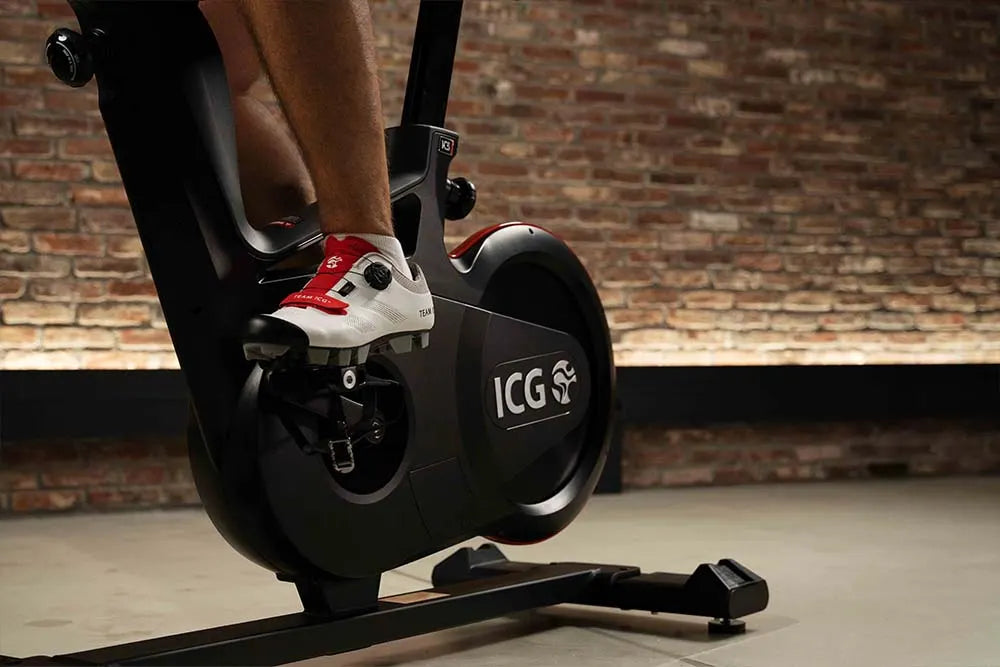

| Crank Type | CrMo 6.79" (172.5 mm) |
| Drivetrain | Poly-V belt |
| Drivetrain Gear Ratio | 1:10 |
| Emergency Stop | Push (EN-957-10) |
| Flywheel | Rear, aluminum, evenly-weighted |
| Flywheel Weight | 7.6LB |
| Frame Color | Matte slate |
| Frame Design | Off-set |
| Frame Material | Steel |
| Frame Stabilizer Bars | Oversized, hidden bolts & fixings |
| Handlebar | Ergo-formed, multi position, soft PVC |
| Handlebar Adjustments | Vertical & horizontal |
| Levelling Feet | 4 |
| Max User Weight | 330 Lbs (150 Kg) |

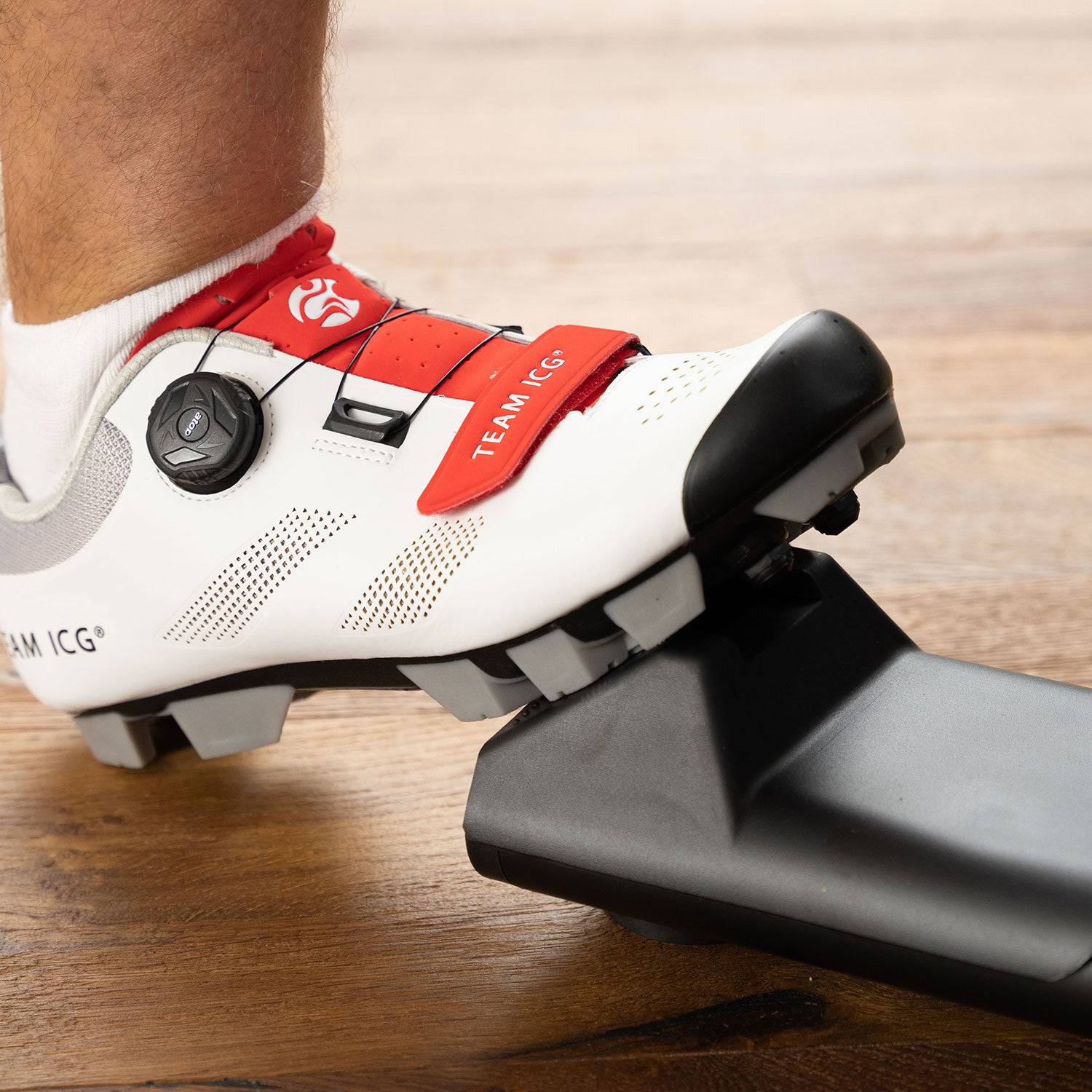

| Pedal Type | Dual-sided SPD & toe cage |
| Posts & Sliders | Aluminum, pin-to-lock adjustment |
| Power Measurement | WattRate® Power Measurement (calculated) |
| Protection and Stretch Plates | Molded form-fit with stretch plate |
| Q-Factor | 155 mm |
| Resistance System | Magnetic |
| Saddle | Unisex padded sport saddle |
| Saddle Adjustments | Vertical & horizontal |
| Shrouds/Guards | Full frame |
| Training Intensity Guide | Coach By Color® |
| Transport Wheels | 2 |
| User Assist Adjustments | Handlebar assisted |
| Warranty | Structural frame – 5 years; Mechanical components – 3 years; Other parts – 1 year; Labor – 1 year |
| Water Bottle Holder | Dual, integrated on handlebar |
| Workout Tracking | ICG Training App |
