LSS | Quatro Stacker Standard — Four-Post Lift 8,000 LB. (3.6T)

Product Description

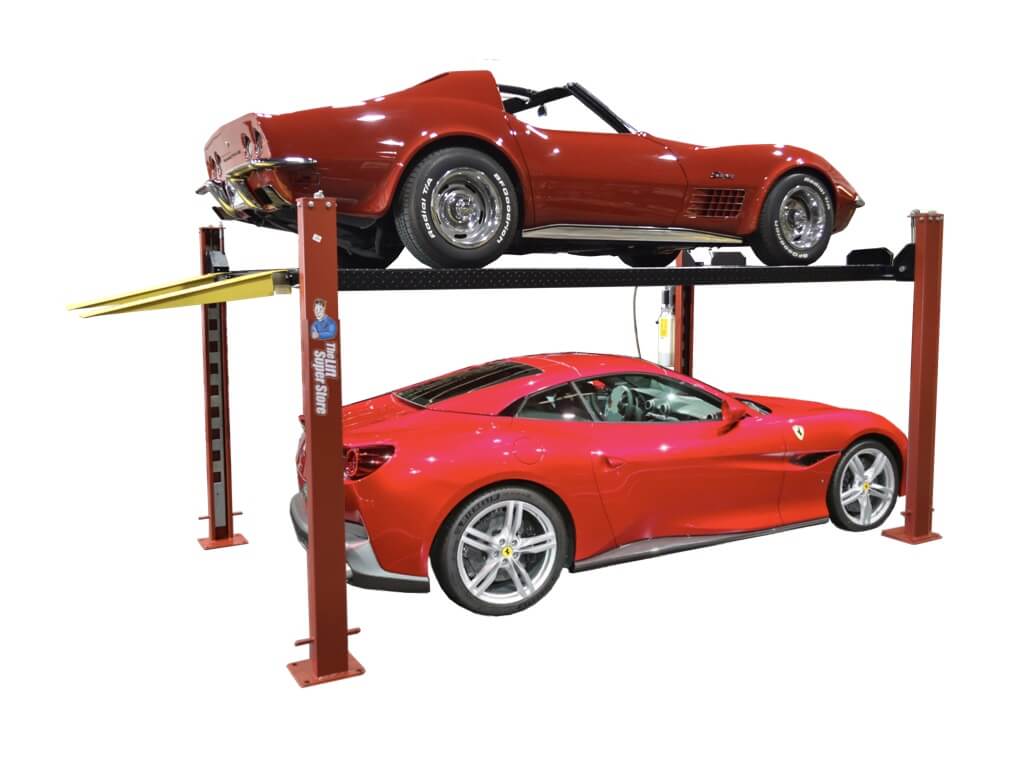

The Quatro Stacker is an ALI-certified four-post lift for use in both residential and commercial applications. This is the ideal storage, parking, and service solution for your vehicle lifting needs. It offers a lifting capacity of 8,000 lb. (3.6T) and clearance height for tall trucks, SUVs, and all varieties of cars.

Low Maintenance Problem-Free Design

  • 70” / 1778mm stroke 3” / 76mm high pressure cylinder mounted under runway with prestressed 3/8” / 9.5mm lifting cables and 4” / 102mm steel pulleys.
  • Tough wheelabrator finished steel structure with premium double bake finish.

Built & Tested to Commercial Safety Standards

  • 3rd party tested by M.E.T laboratories to meet or exceed the ANSI/ALI ALCTV 2017 Standard.
  • Single point automatic deadman safety with adjustable locking ladders with locks spaced every 6” / 152mm.

Premium Accessories Included with Each Lift

  • Each lift comes equipped with a removable caster wheel kit, three steel drip and drain pans, and one HD steel jacking tray.
  • A 3,500 lb / 1.5T hydraulic jacking beam and aluminum approach ramps are available as options.

Flexible Vehicle Loading

  • Low to the floor 4.3” / 109mm deck height with low angle removable approach ramps accommodates exotic sports cars and vehicles with low clearance ground effects.
  • Runways 18.7” / 475mm wide are adjustable from 74.8” /1902mm to 80-7/8” / 2054mm wide.

Premium North American Components

  • North American-made Monarch (Bucher) power unit, 3/8” / 9.5mm equalizing cables, cylinders, and hoses.
Sku: LSS4P8PLDXAL
Vendor: LLS
$4,200.00
