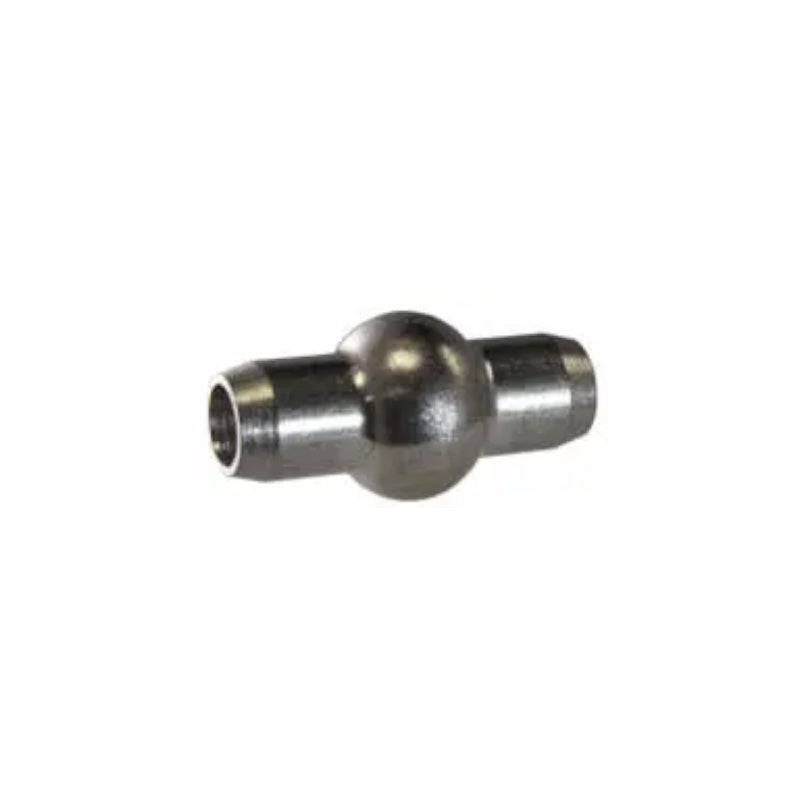

XTC Gear | Cable End - Stainless Steel Double Shank Ball End

Name: XTC Gear | Cable End - Stainless Steel Double Shank Ball End
Brand: Loos & Co
SKU: MS20663C4
Price: 5.99 CAD
Availability: InStock

$5.99 CAD

SKU: MS20663C4

Size:

Variant

Quantity:

In stock

Pickup available at XTC Fitness Inc. Stock items usually ready in 1 hour or less.

XTC Fitness Inc.

Pickup available, stock items usually ready in 1 hour or less.

2222 South Sheridan Way
Unit 112
Mississauga ON L5J 2M4
Canada

+18889823481

The MS20663 Series double shank balls are manufactured from Military Specification Stainless Steel to the strict standards of the MS20663, and are certified to that standard. Loos Cableware® Division offers a full line of sizes.

MIL-DTL-781: YES
MADE IN THE USA: YES
DFARS COMPLIANT: YES

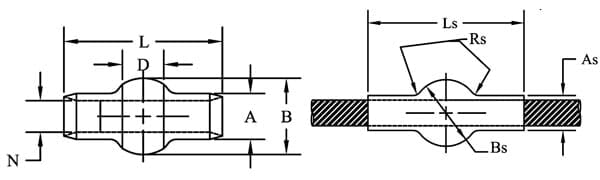

MS Part Number	Cable Dia.	A Dia.	As Dia.	B Dia.	Bs Spherical Dia.	D Ref.	L ± .0075	Ls Ref.	N Dia.	Rs Rad.Ref.	Lbs. per Piece
MS20663C2*	1/16	0.127	0.112	0.207	0.190	0.114	0.362	0.390	0.073	0.014	0.0016
MS20663C3*	3/32	0.163	0.143	0.277	0.253	0.152	0.525	0.578	0.104	0.019	0.0032
MS20663C4*	1/8	0.218	0.19	0.345	0.315	0.1895	0.688	0.765	0.139	0.023	0.0094
MS20663C5*	5/32	0.254	0.222	0.419	0.379	0.227	0.85	0.953	0.169	0.028	0.0125
MS20663C6*	3/16	0.293	0.255	0.487	0.442	0.264	1.012	1.14	0.201	0.033	0.025
MS20663C7*	7/32	0.347	0.302	0.555	0.505	0.3025	1.175	1.328	0.233	0.038	0.032
MS20663C8*	1/4	0.401	0.348	0.624	0.567	0.3395	1.337	1.515	0.264	0.042	0.04
MS20663C9*	9/32	0.439	0.382	0.694	0.632	0.3775	1.497	1.719	0.297	0.046	0.042
MS20663C10*	5/16	0.475	0.413	0.763	0.694	0.4145	1.664	1.875	0.328	0.046	0.043

MS Part Number	Cable Dia.	A Dia.	As Dia.	B Dia.	Bs Spherical Dia.	D Ref.	L ± .0075	Ls Ref.	N Dia.	Rs Rad.Ref.	Lbs. per Piece
MS20663C2*	1/16	0.127	0.112	0.207	0.190	0.114	0.362	0.390	0.073	0.014	0.0016
MS20663C3*	3/32	0.163	0.143	0.277	0.253	0.152	0.525	0.578	0.104	0.019	0.0032
MS20663C4*	1/8	0.218	0.19	0.345	0.315	0.1895	0.688	0.765	0.139	0.023	0.0094
MS20663C5*	5/32	0.254	0.222	0.419	0.379	0.227	0.85	0.953	0.169	0.028	0.0125
MS20663C6*	3/16	0.293	0.255	0.487	0.442	0.264	1.012	1.14	0.201	0.033	0.025
MS20663C7*	7/32	0.347	0.302	0.555	0.505	0.3025	1.175	1.328	0.233	0.038	0.032
MS20663C8*	1/4	0.401	0.348	0.624	0.567	0.3395	1.337	1.515	0.264	0.042	0.04
MS20663C9*	9/32	0.439	0.382	0.694	0.632	0.3775	1.497	1.719	0.297	0.046	0.042
MS20663C10*	5/16	0.475	0.413	0.763	0.694	0.4145	1.664	1.875	0.328	0.046	0.043
