XTC Gear | Cable End - Strap End

Sale price$19.00 USD
SKU: NAS1435E-4
Size:

Size

Quantity:
In stock
Pickup available at XTC Fitness Inc. Stock items usually ready in 1 hour or less.

XTC Gear | Cable End - Strap End

1/8

XTC Fitness Inc.

Pickup available, stock items usually ready in 1 hour or less.

2222 South Sheridan Way
Unit 112
Mississauga ON L5J 2M4
Canada

+18889823481

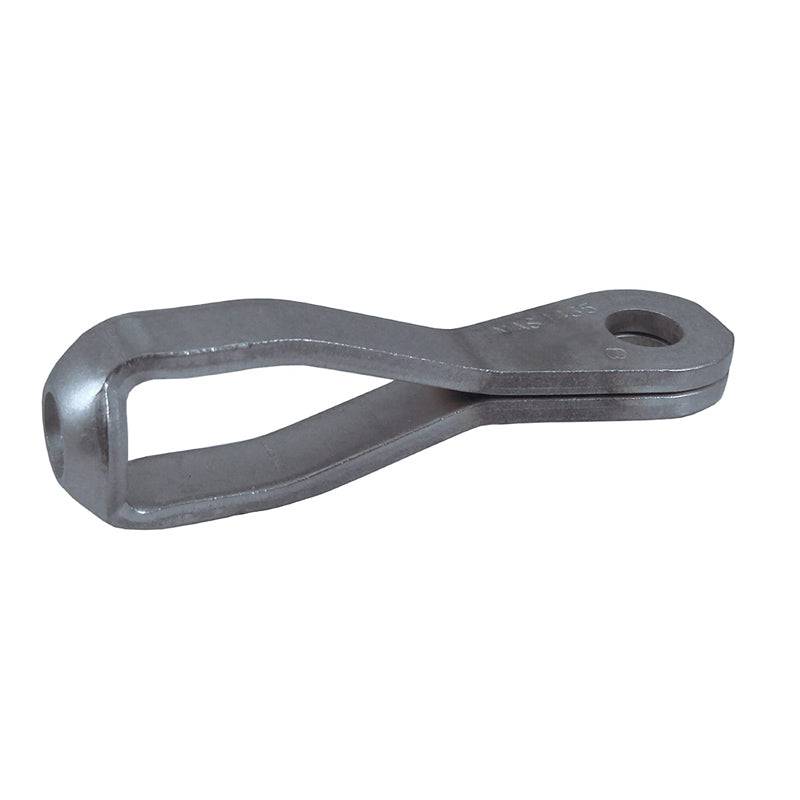

The NAS1435-E series strap eye end fittings are manufactured to the strict standards of NAS1435-E. Also known as “strap eyes” or “strap eye end fittings”, they are certified to the NAS1435-E. Loos Cableware® Division NAS1435-E strap eye end fittings are DFARS compliant.

  • NATIONAL AEROSPACE STANDARD: YES
  • MADE IN THE USA: YES
  • DFARS COMPLIANT: YES

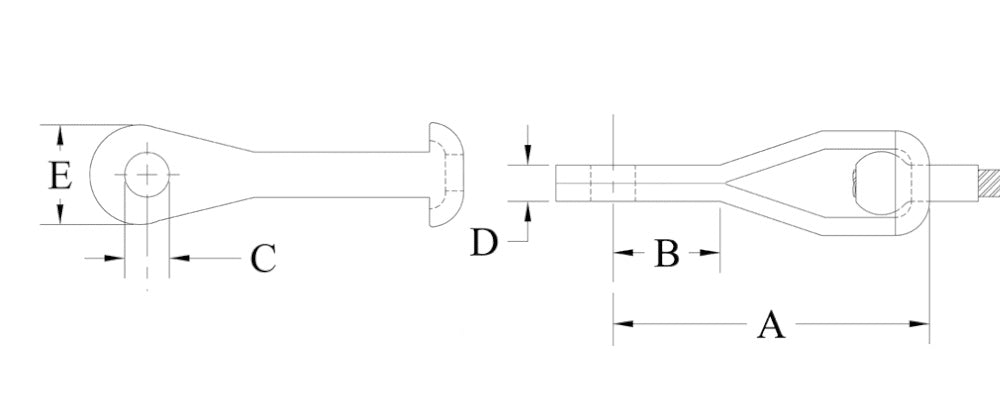

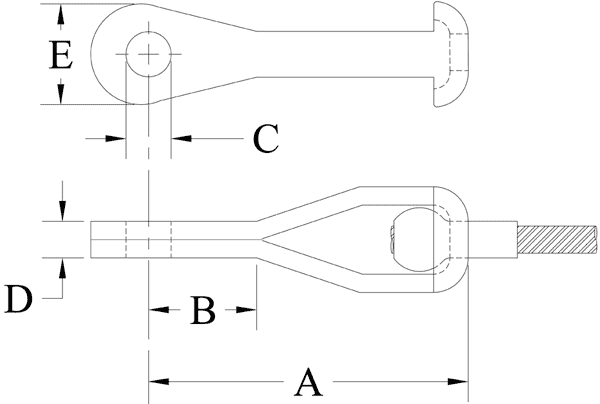

MS Part No
Cable Dia.
A
B
C
D
E
F
Lbs. Per Piece
NAS1435E2* 1/16 1-1/16 .454 .188 .088 3/8 .093 .006
NAS1435E3* 3/32 1-1/2 .616 .188 .103 7/16 .108 .013
NAS1435E4* 1/8 1-5/8 .638 .188 .190 1/2 .195 .030
NAS1435E5* 5/32 1-31/32 .699 .250 .197 9/16 .202 .042
NAS1435E6* 3/16 2-3/16 .750 .313 .255 11/16 .260 .083
