XTC Gear | X-Series Squat Rack w/Chin-up
Size
Pull-Up
XTC Gear | X-Series Squat Rack w/Chin-up
84" / Single Grip
XTC Fitness Inc.
2222 South Sheridan Way
Unit 112
Mississauga ON L5J 2M4
Canada

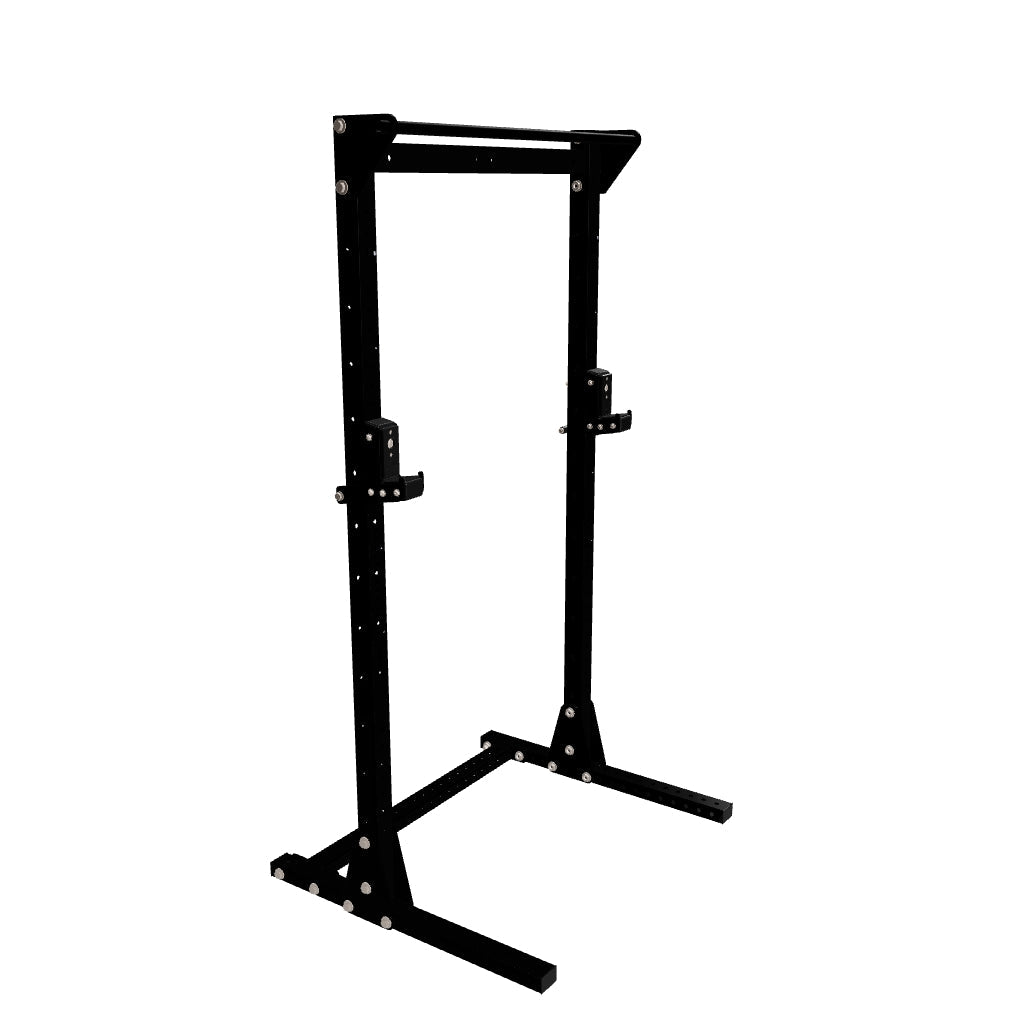

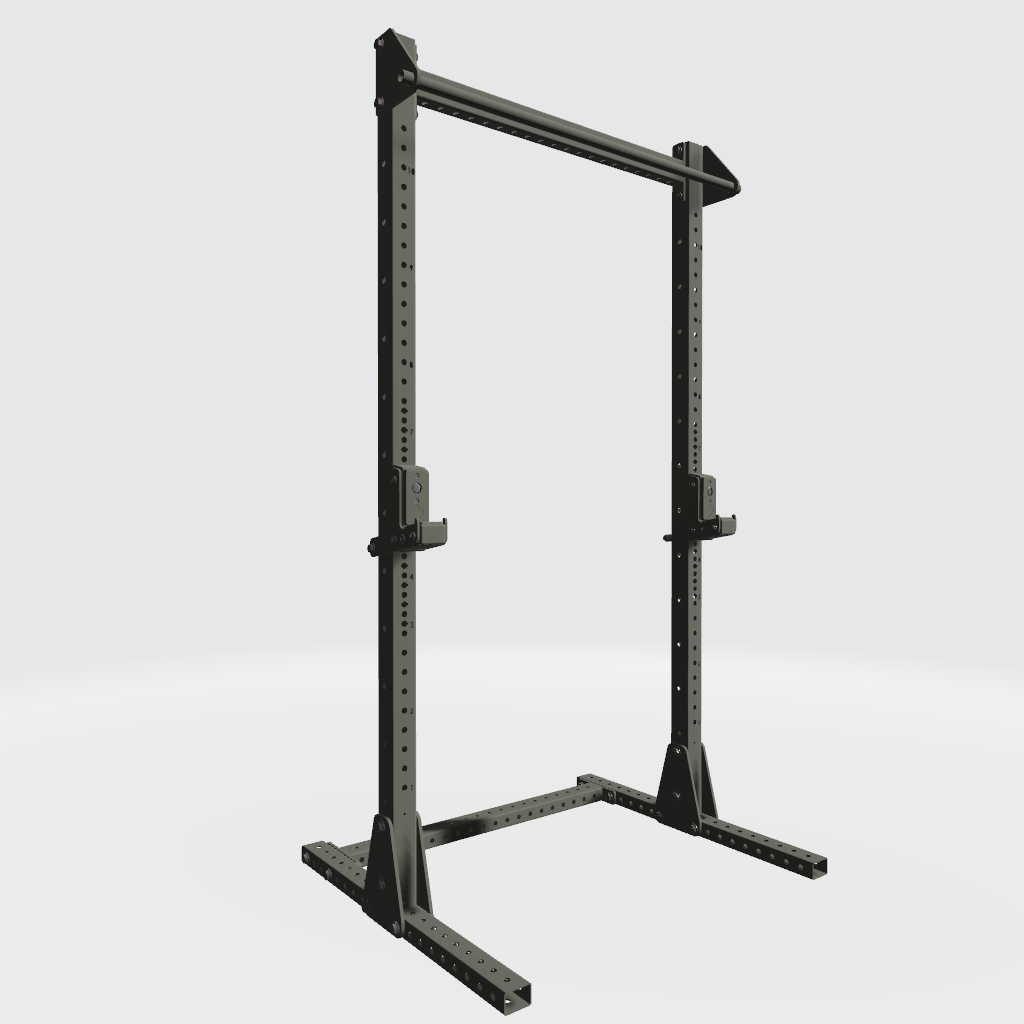

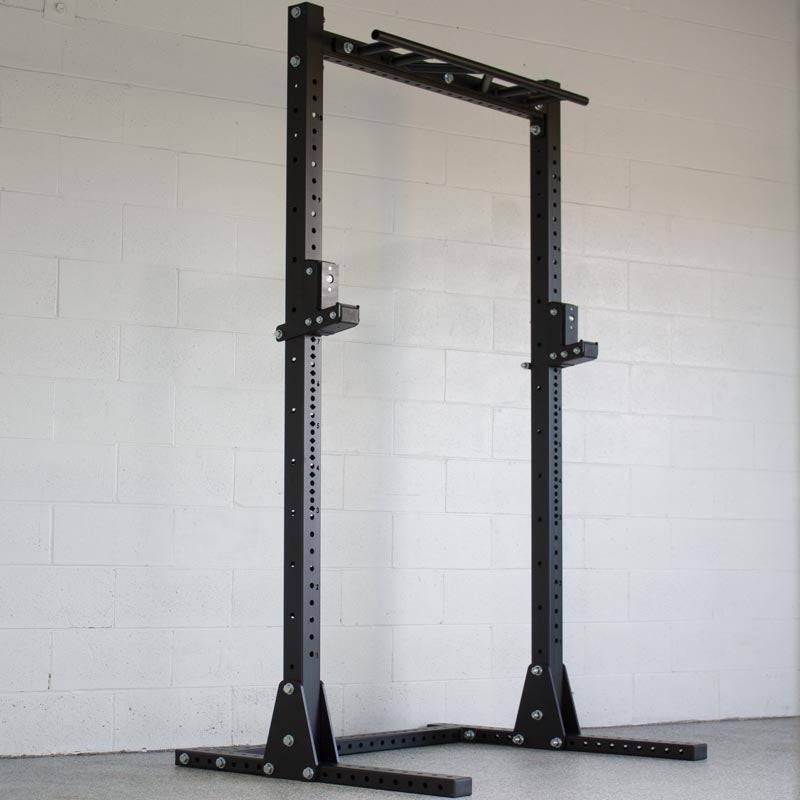

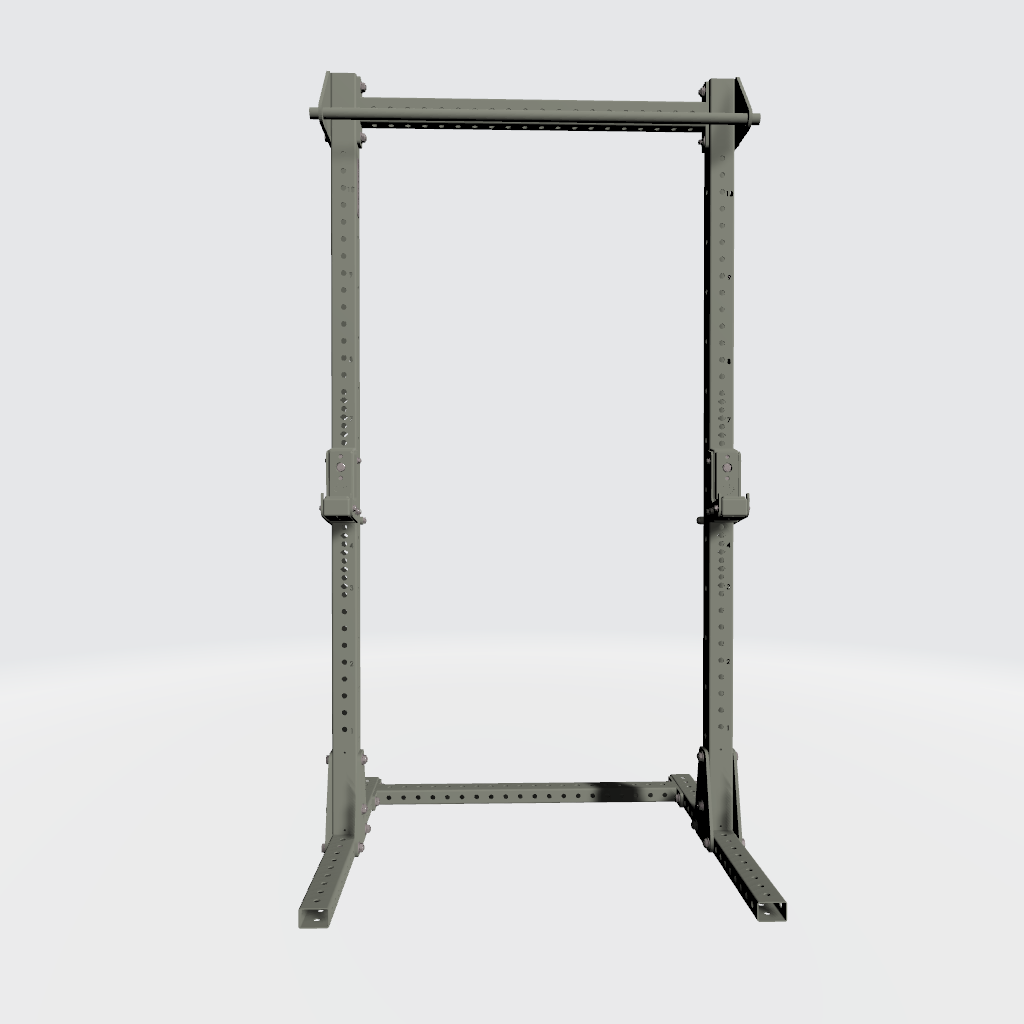

The X-Series Squat Rack w/Chin-up is available in a variety of heights including two stock heights, 84" and 92". We also offer customized heights to fit your space perfectly. With a compact four-by-four foot base this unit maximizes your space to be the ultimate workout centre piece. This rack features premium A500, 11-gauge, 3" x 3" Canadian Steel uprights, laser-cut with 5/8" holes spaced 1" & 2" (West Side Hole Spacing), Oversized Heavy-duty 0.25" sheet metal bracing, and robust A500 11-gauge 2" x 3" tube base frame with pre-cut floor mount holes for those who wish to anchor their racks. Not only is this rack built like a tank, it's easy to use - equipped with Turn and Lock J-Hooks that are lined with UHMW to protect your bar's knurling.
This taller rack is equipped with a pull-up bar, making it highly versatile. Great for Squat, Bench Press, Clean-pulls, floor press, shoulder press, standing overhead press, pull-ups and more.
Barbell, Bench, Spotters, Weights SOLD SEPARATE
| Feature | Specs |
| MODEL | X-Series Squat Rack w/chin-up/td> | SERIES | X-Series |
| STEEL TUBE SIZE | 3" x 3" |
| STEEL GAUGE | 11 Gauge |
| HOLE SIZES | 5/8" |
| HOLE SPACING | 1" & 2" |
| NUMBERS | YES |
| NUMBER SPACING | Every 5 Holes |
| CHIN-UP BAR | YES, Multi-Grip or Single |
| WEIGHT CAPACITY | 1000Lb |
| DIMENSIONS | 49.5" x 42.5" x 92" (Custom Also Available) |
| INSIDE UPRIGHT WIDTH | 42" |
| RACK WEIGHT | VARIES BASED ON HEIGHT & DEPTH |
| COLOR | STOCK BLACK |
| MADE IN | CANADA |
| PRODUCTION ETA | IN STOCK UNLESS OTHERWISE NOTED |
| Component | Warranty |
| Frame | Lifetime warranty from manufacture defect |
| J-Hooks | 1-Year |
| UHMW | 5-Year Residential, 2-Year Commercial |
Featured products
X-Series Squat Rack w/Chin-up
The X-Series Squat Rack w/Chin-up is available in a variety of heights including two stock heights, 84" and 92". We also offer customized heights to fit your space perfectly. With a compact four-by-four foot base this unit maximizes your space to be the ultimate workout centre piece. This rack features premium A500, 11-gauge, 3" x 3" Canadian Steel uprights, laser-cut with 5/8" holes spaced 1" & 2" (West Side Hole Spacing), Oversized Heavy-duty 0.25" sheet metal bracing, and robust A500 11-gauge 2" x 3" tube base frame with pre-cut floor mount holes for those who wish to anchor their racks. Not only is this rack built like a tank, it's easy to use - equipped with Turn and Lock J-Hooks that are lined with UHMW to protect your bar's knurling.
modular design
Our line of Canadian made equipment is highly modular allowing you to expand on your setup as your workout needs evolve. With our line of X-Series attachments you can build the rack of your dreams in phases or all at once. We also manufacture custom equipment that can easily be integrated into our exsisting design thanks to our modular concept. Not only do our racks fit our X-Series product, this rack also fits 3x3" (with 5/8" pin) rack attachments from a variety of other brands allowing you to mix and match to best suit your training demands.
The X-Series
Meet the X-Series, XTC Gear's most poplar line of equipment. Designed for commercial facilities who demand the best, but don't want to break the bank.
Our X-Series products have been installed in some of the most demanding facilities in the country including CrossFit Boxes, Military Bases, Police Stations and Academies, Universities and schools. Proudly Canadian Made equipment with attention to detail.
Our equipment is designed and fabricated in house using locally sourced Structural Canadian Steel. All steel parts are processed using the most innovative and advanced manufacturing techniques from CNC machining to Flat Sheet and Tube Laser Cutting.
We maximize material efficiency, repeatability of our processes to make our gear as affordable as possible. We have taken a unique design approach to limit the number of welds making our gear more modular and likely to fit into any space while being easy to assemble.
Compact and Solid
We recently decided on adding a rack to our condo so that we could workout during the lockdowns and couldn't be more pleased with this beast. It takes up a minimal 4x4 space which is ideal when not in use as the unit is in our living room, but it is absolutely perfect for accomplishing virtually every exercise necessary (squats, bench press, pull-ups etc.). The rack is very well made, the steel is heavy gauge, the welds are clean, the UHMW liners are THICK and have a nice machined maple leaf, j-hooks are easy to adjust (as are the safeties which we added), and the chin-up bar offers plenty of variety for grip, all around its a perfect setup. We decided to add the super bench to the set to get maximum versatility out of the system and couldn't be happier. The website does not do this rack enough justice, I have worked out at many gyms that have Rogue or hammer strength racks and this blows them away. I have already recommended it to all my friends looking for equipment.
Solid Rack
Ordered this with a single grip pull-up bar around the time the lock downs started in March of 2020. Very happy with the product and even happier to have a home gym. The rack is surprisingly stable, side-to-side. Doesn't rock much at all. Can be bolted down if desired. The J-Hooks absolutely overkill and are easy to reposition. The metal tabs that are intended to stop the bar from rolling off are short and easy to unrack over. Two minor things with the J-hooks: First, I wish the front tabs weren't metal as I've knicked them once or twice with the bar. Not sure how else you'd do it though. Second, the UHMW tube that hugs the back of the uprights is held in place with a washer and lock nut. The washer and the UHMW tube aren't quite the same diameter and if you snug the nut up too much, the washer will wear down the powder coat on the uprights over time.
RACK worth Raving!
This XTC X-series S92 multi grip rack does it all.... A very well valued, sturdy, solid piece of equipment everyone must have for their gym. It's been a breeze to use at home, for all our various routines in our house, and compliments the rest of our home gym (XTC provided) so perfectly. The height adjustment is a fantastic feature, and even better is the easy to move J-hooks for the rest of my family. The versatility of the piece, the clean look, and the customer service - can't be beat! Thanks a bunch XTC Fitness!
THE PERFECT IRON PARADISE
I never thought I would see the day I owned my own squat rack (aka mini home gym, because that’s what this rack provides)!! I love it’s versatility and having a multi-grip pull up bar to go with it, really elevates my at-home training. I’ve been desperate for consistency in my strength training ever since COVID hit, and thanks to Daniel at XTC Fitness, I finally have just that. The quality of this rack is excellent; Daniel installed the rack in my home quickly and safely. The beauty of these racks is that the height can always be adjusted and modified to fit the height requirements of wherever you are installing it. The jhooks are fantastic and easy to move. I paired this rack with a 7ft Olympic bar and York Barbell’s cast iron weight plates. I miss the gym, but having my own iron paradise allows me to continue training even through all of this uncertainty. If you are interested in consistency and elevating your at-home training routine, I would highly recommend this squat rack, among similar series and products that XTC Fitness has to offer. Additionally, it was such a great price!! Dan made building a home gym very exciting and affordable—WIN WIN. Cheers everyone and make sure you train harder than last time!
Best Rack Ever!!!
This is a must have piece of equipment. I'm so happy with the quality of it's heavy duty, sturdy steel and solid assembly. Can't beat Canadian made products. I was originally going to buy York products to get me through the covid shut down of gyms, but I'm glad I spoke to XTC owner Daniel first. After seeing his vast products in the warehouse and with his knowledge convinced me to spend a little extra for superior equipment. With his advice I ordered X-Series IPF Spec Plates, Olympic Bar, X-Series Super Bench X-Series Squat Rack - S92, J-Hooks and Safety Spotters and Hex Dumbbell set. Now I can work out without ever going to the gym again. Thanks Daniel
Very Solid Rack
Very high quality and sturdy as a rock. Fairly priced compared to American alternative and it is made in Canada which is a bonus. The J-hooks are also really nice with a thick plastic liner and stainless steel pin so it won't scratch the paint off it like my old rack, and the multi bar gives several nice options for pullups. It has several holes along the base so you can build the posts up in any position which was helpful as I have a bulk head and this let me keep the base tucked back to the wall while getting the full advantage of the height.
