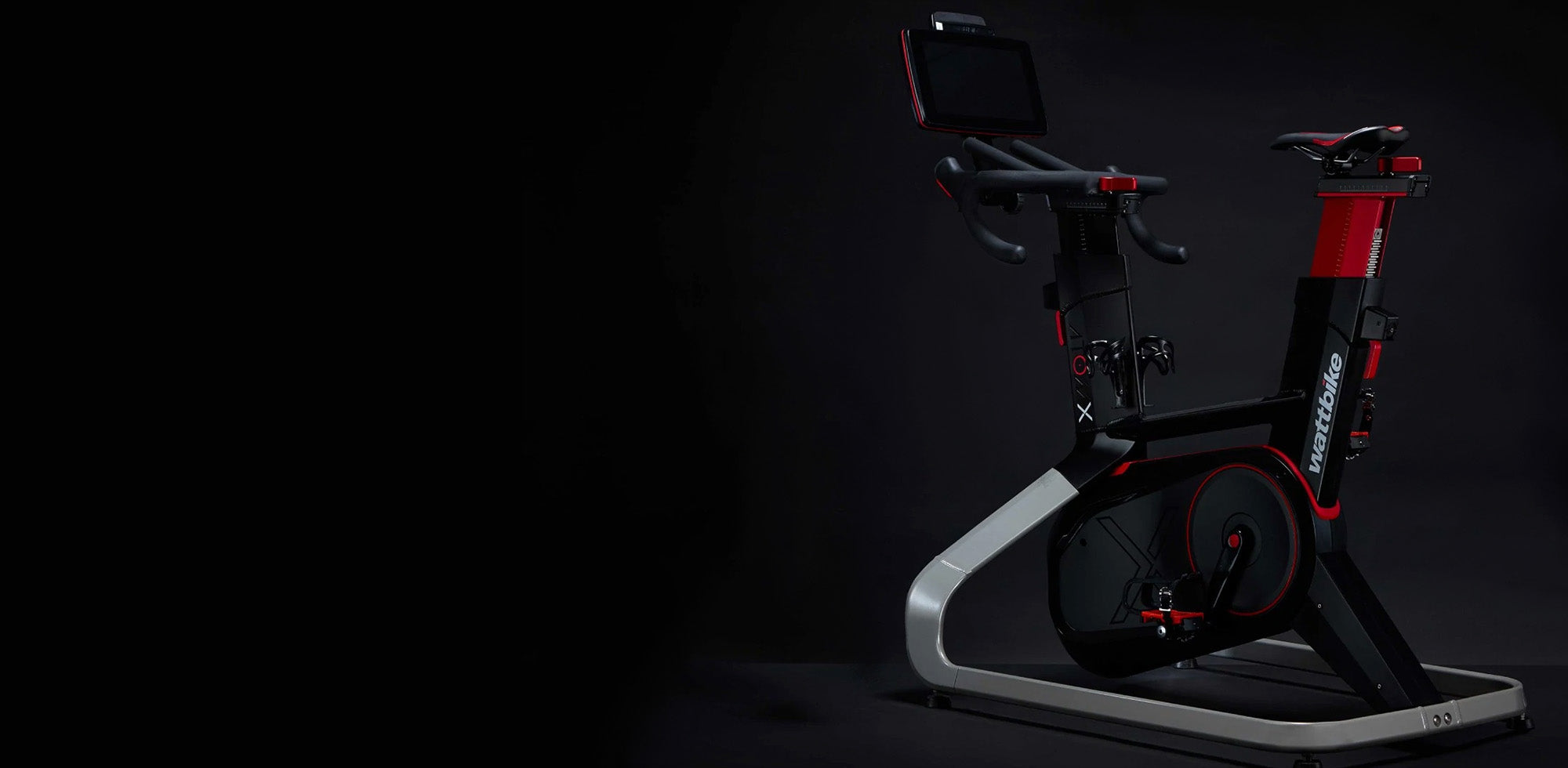

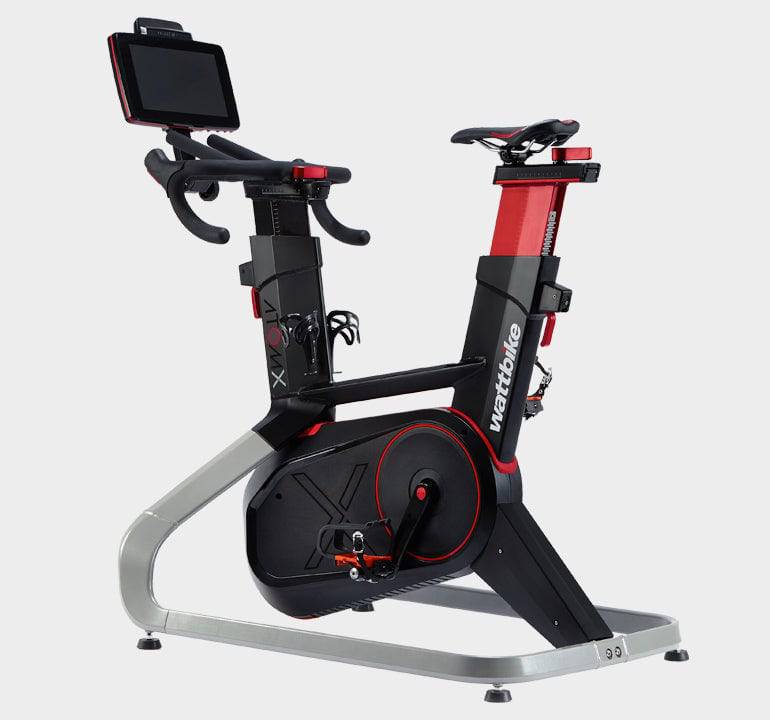

The Wattbike AtomX smart bike features the new high-definition Performance Touchscreen and integrated shifters, allowing users to switch seamlessly between ergo and gear mode. All new Climb Mode allows riders to tackle bucket-list climbs from around the world. The AtomX’s smart resistance changes automatically to precisely map the gradient of the virtual ride, so taking on a legendary climb is exactly as tough as it should be. Bring your Wattbike Zone to life with the AtomX – the most advanced commercial smart bike ever created.
| Frame | 5 Year |
| Mechanical Components | 3 Years |
| Other Parts | 1 Year |
| Labour | 1 Year |
Electromagnetic Resistance
The Nucleus’s unique technology replicates the resistance and sensation of riding on the road, delivering the most authentic ride feel available. That means all of the effort you put in indoors easily translates out onto the road.

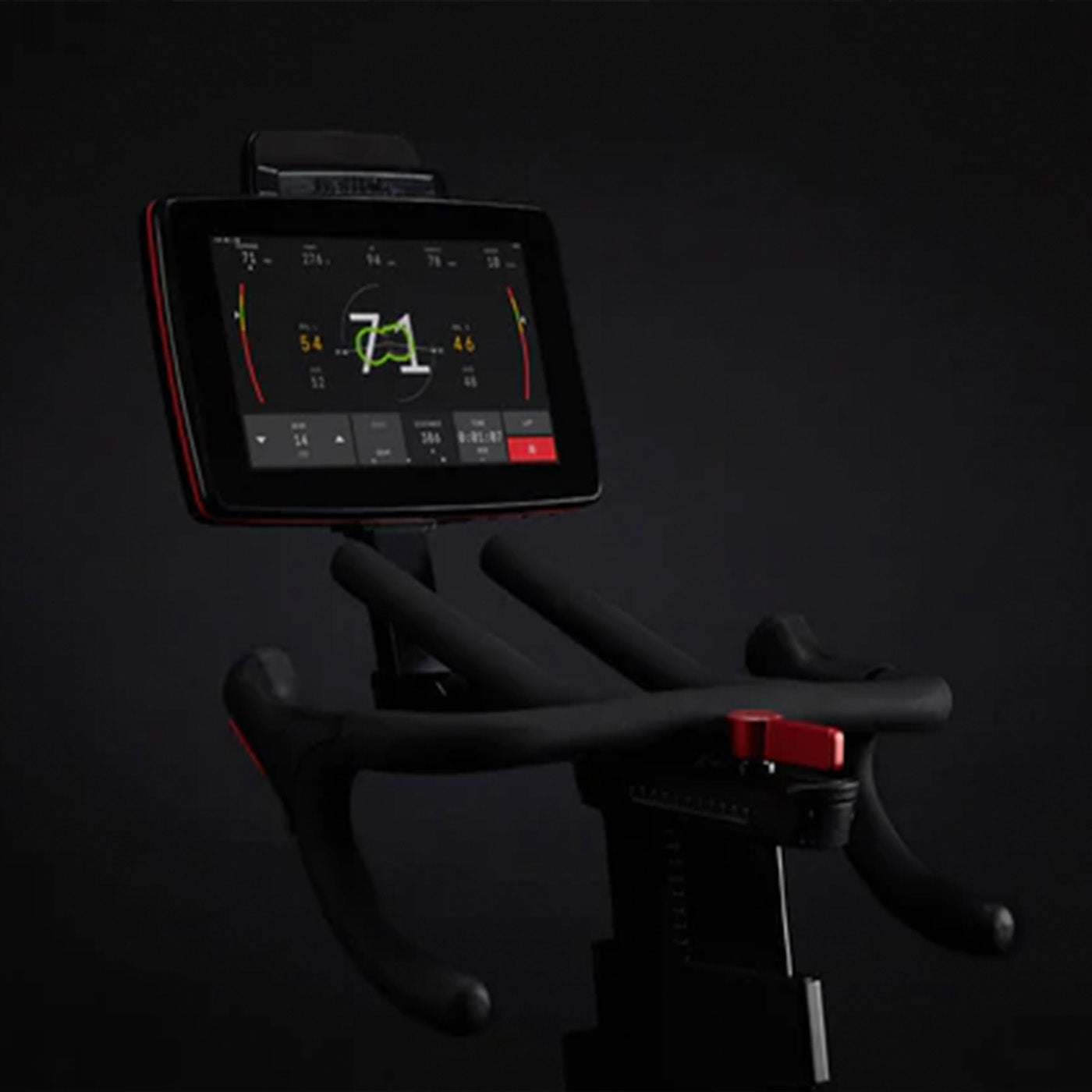

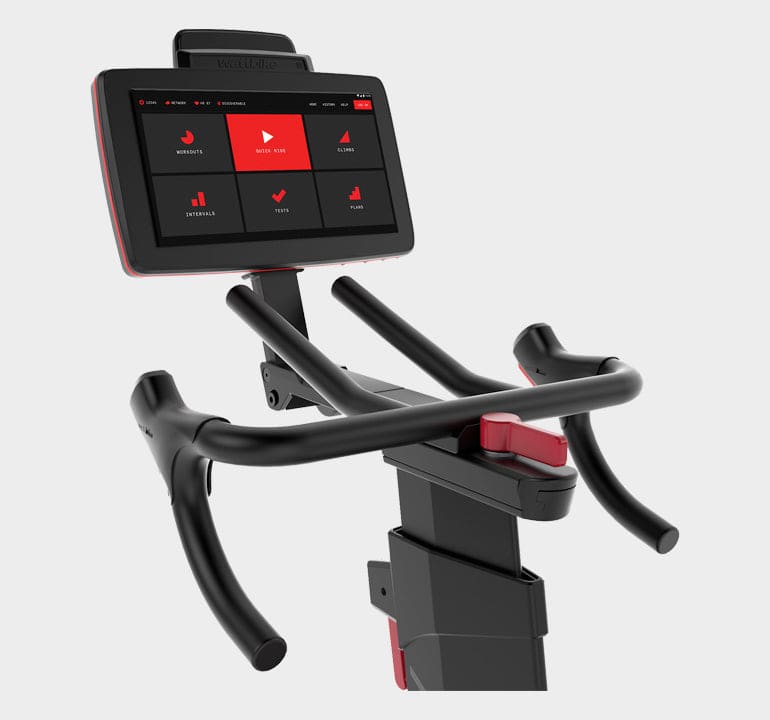

PERFORMANCE TOUCHSCREEN
The touchscreen elevates the cycling experience by delivering incredibly accurate performance feedback. It includes workouts, tests, and Wattbike’s brand new interval builder.

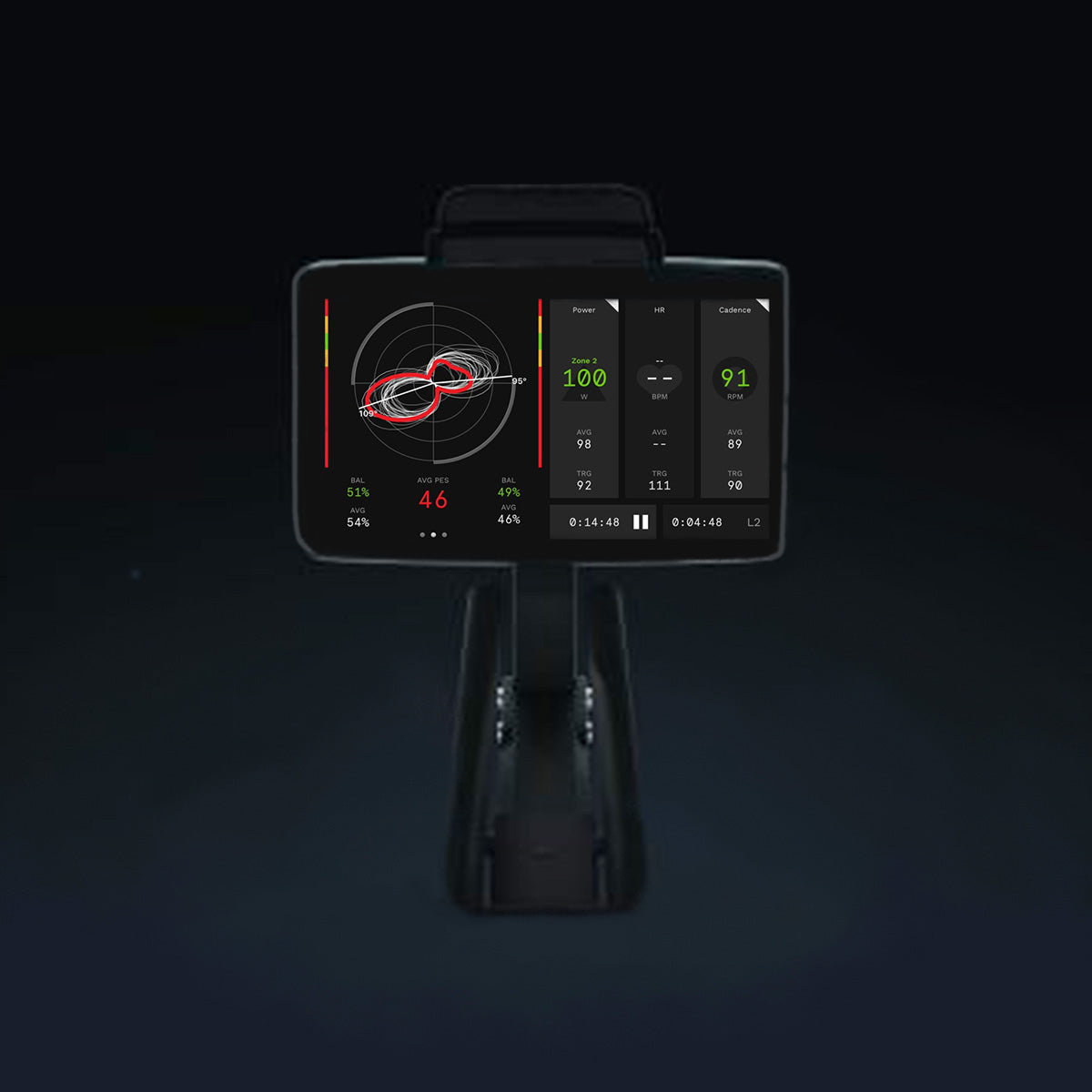

Pedaling effectiveness score
Pedaling Effectiveness Score is a unique technique analysis tool. Building on the industry defining Polar View, PES provides riders with a color coded display and numerical score. Previously only available via smartphone and tablet on the Hub app, you can now find it right in the touchscreen of the Wattbike Nucleus.
Connect to Zwift, Peloton and more...
From HIIT sessions to hill climbs, the Wattbike AtomX smart bike is the ultimate indoor training partner. Whether you're racing friends on Zwift, straming a spin class on Peloton or climbing Ventoux on the Wattbike hub, our smart bike means you'll experienc smoother climbs and instand gear changes to replicate the feeling of riding outdoors, indoors.
Unrivaled Performance Accuracy
With Wattbike DNA at its core, the Atom improves your performance in real time with Wattbike precision data and analysis like no indoor smart bike ever has before. Next generation Wattbike Atom reads your data 1000 times per second for an accuracy level of +/- 1%.
A Reliable & Accessable smart bike
The Wattbike Atom is your virtual personal trainer, 365 days a year. Every ride on the smart bike will improve your performance in real time and give you the data you need to make every session count. As it's a smart bike, you can even improve your pedalling technique and power output by using the unique analysis tool on the free Wattbike Hub app.

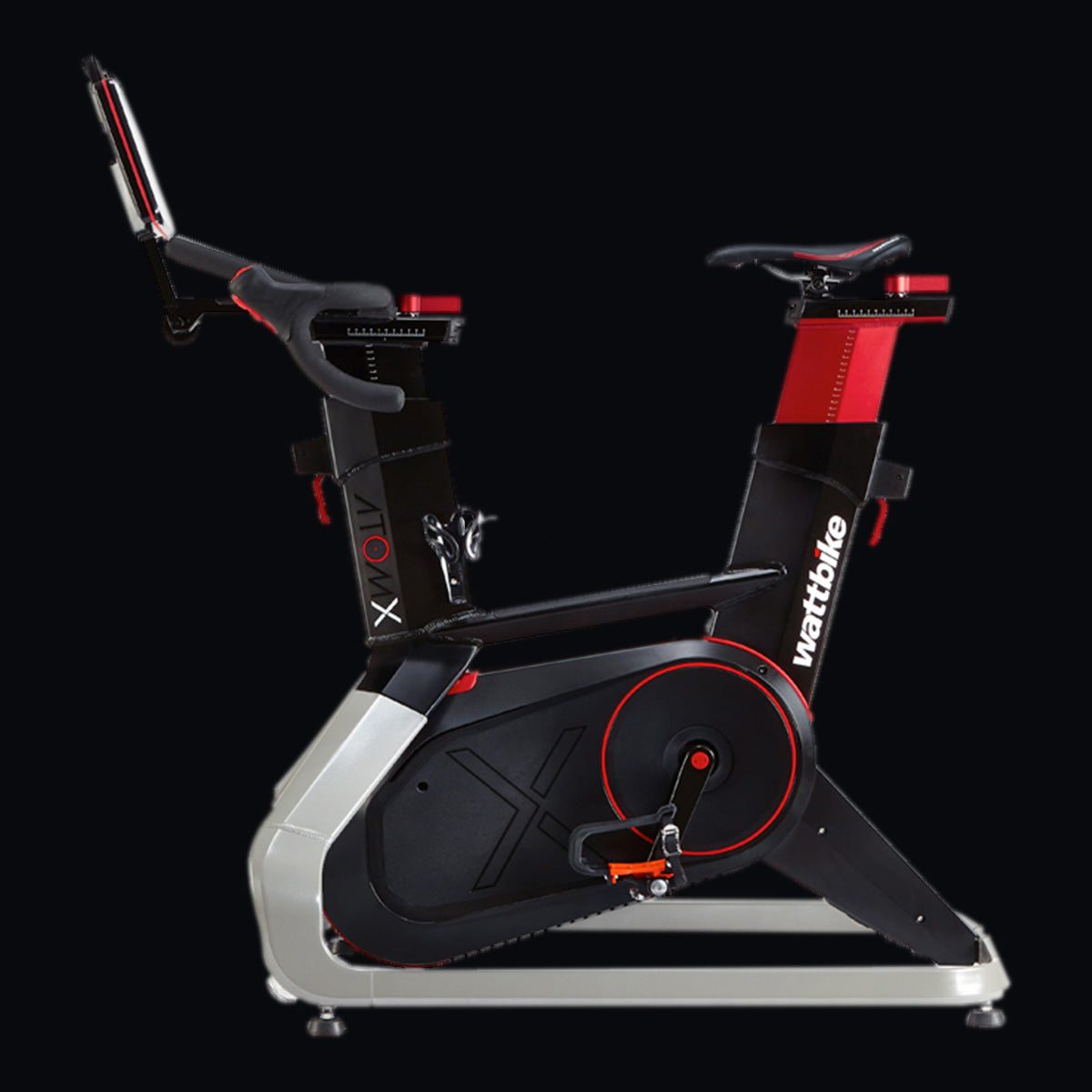

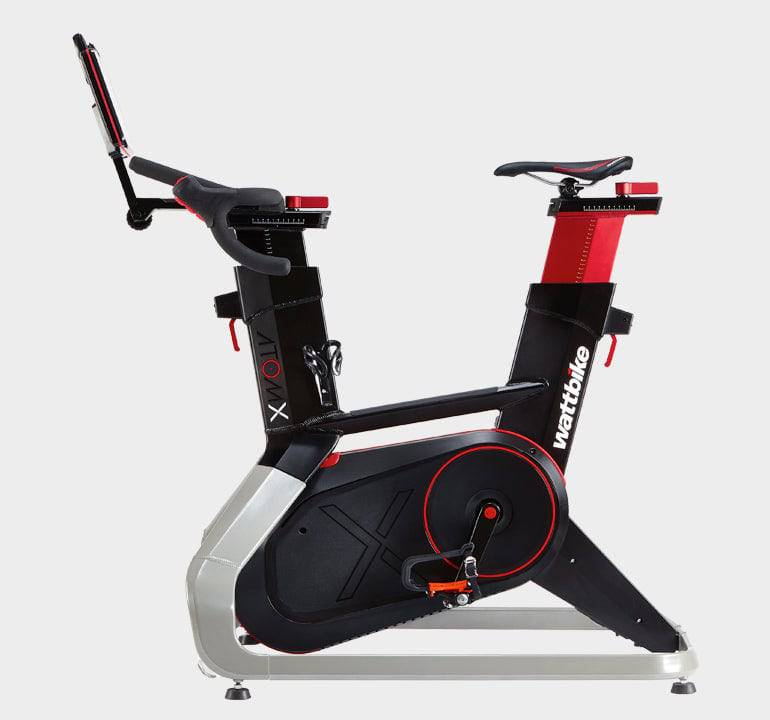

Gear Specs
| CATEGORY | SPECIFICATION |
|---|---|
| Dimensions | 57" L x 26" W x 53" H (145cm x 66cm x 135cm) |
| Adjustment Type | Dials & levers |
| Computer | High-definition Performance Touchscreen |
| Computer Power Supply | Plug-in |
| Crank Length | 170 mm |
| Drivetrain | T15 Timing belt and Industrial 1⁄2" x 1⁄8" steel |
| Drivetrain Gear | 1 - 22 (magnetic) |
| Emergency Stop | Yes |
| Flywheel | Front |
| Frame Color | Black |
| Frame Material | Steel |
| Frame Stabilizer Bars | Front & Rear w/Rubber Feet |
| Handlebar | Ergo-formed, race position, soft PVC |
| Handlebar Adjustments | Vertical & horizontal |
| Levelling Feet | 4 |
| Max User Weight | 330 Lbs (150 Kg) |
| Pedal Type | Combination pedals fitted as standard |
| Posts & Sliders | Aluminum, pin-to-lock adjustment |
| Power Measurement | Watts, +/-1% Accuracy |
| Protection and Stretch Plates | N/a |
| Q-Factor | 160 mm |
| Resistance System | Electromagnetic |
| Saddle | Racing seat fitted as standard |
| Saddle Adjustments | Vertical & horizontal |
| Shrouds/Guards | Heavy-duty ABS plastic construction |
| Rider Height | 5'6"-6'5" |
| Transport Wheels | 2 |
| Power Range | 0-2500W |
| Warranty | Structural frame – 5 years; Mechanical components – 2 years; Other parts – 6 Months; Labor – 1 year |
| Workout Tracking | Wattbike Atomx support apps that are ANT+ compatible. (Any ANT+FEC Bluetooth FTMS enabled app inc Zwift, Sufferfest, TrainerRoad, FulGaz, RGT) |
